CE PED | Pressure equipment
PED is abbreviation of Pressure Equipment Directive (2014/68/EU), which is a pressure equipment instruction that applies to design, manufacture and conformity assessment of pressure equipment and components with a maximum permissible pressure of 0.5 bar or more. Manufacturers wishing to export their products to EU countries must be certified in accordance with the Pressure Equipment Directive, which was amended from 97/23/EC to 2014/68/EU as of July 19, 2016.
Scope
This guidance applies to the design, manufacture and conformity assessment of pressure equipment and assemblies with a maximum permissible pressure of 0.5 bar or more. Includes all vessels, piping, safety accessories and pressure accessories.
※ Excluded scope
Proof of pressure equipment (CE marking)

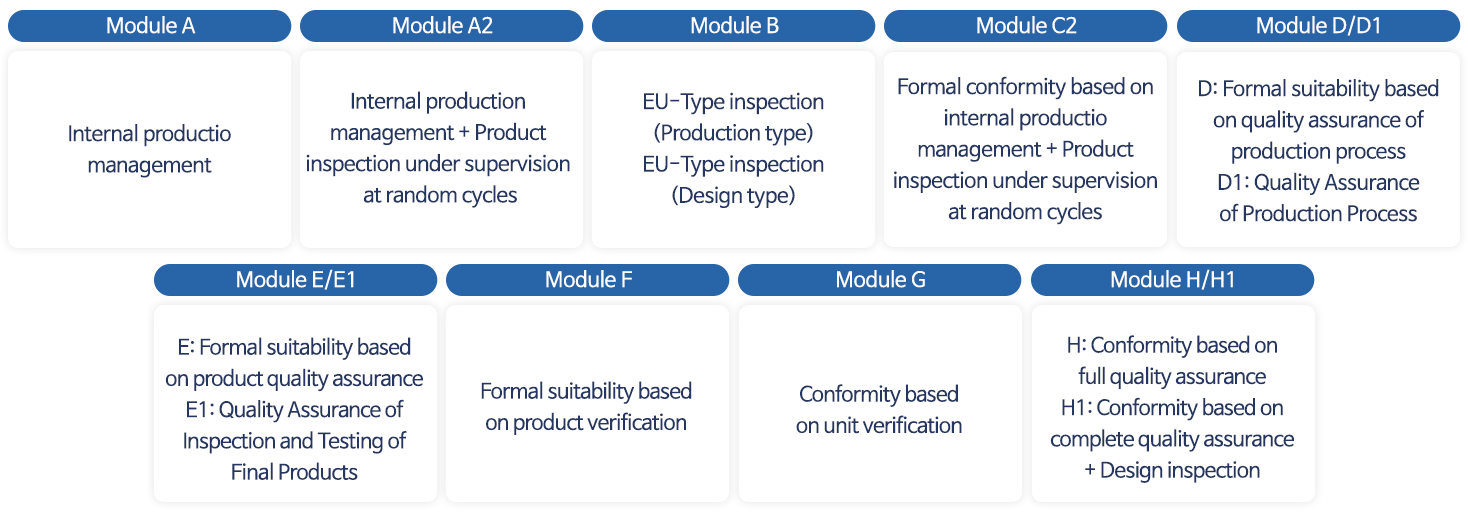

Pressure instruments are classified into four stages of Category I, II, III, and IV according to the maximum allowable pressure (PS), fluid use, volume, and external diameter (DN), and are subject to the module requirements applicable to that category as shown in the table below. For detailed technical requirements for conformity assessment, European technical specifications such as EN 1345, AD2000, and ASME codes are applied.
※ Annex II, Conformity assessment table
※ Annex III, Conformity assessment table
IGC’s Competency
· IGC provides product certification services to companies that want to export their products to Europe based on years of experience.
· We provide the most competitive product certification service through cooperation with leading overseas product certification institutions.
· ISO 9000, Companies that already comply quality management systems can make the most of their current quality systems and meet the essential safety requirements of PEDs.
· If the manufacturer has not been formally certified as a Quality Management System, IGC will provide certification authority services in accordance with the PED QA approach.
